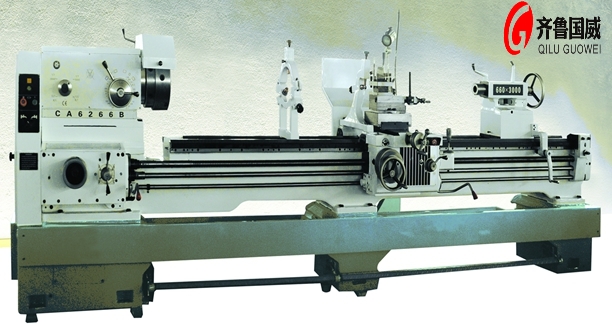

当前位置: 山东jbo竞博数控机床有限公司 > 产品展示 > 普通车床 > CA普通车床 CA普通车床
- 产品参数
CA6166普通车床(国标)参数：
| 型号 Model | CA6140 | CA6240 | CA6150 | CA6250 | CA6161 | CA6261 | CA6166 | CA6266 | CA6180 | CA6280 | ||
床身上工件直径 Max. Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | |||||||
刀架上工件直径 Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | |||||||
马鞍槽工件直径 Max. Swing in gap | - | 630mm | - | 720mm | - | 830mm | - | 880mm | - | 1020mm | ||
马鞍槽有效长度 Effective gap length | - | 210mm | - | 210mm | - | 210mm | - | 210mm | - | 210mm | ||
工件长度 Max. Length of workpiece | 750mm or 1000mm or 1500mm or 2000mm or 3000mm | |||||||||||
| 床身宽度 Width of bed | 400mm | |||||||||||
| 刀杆截面 Section of turning tool | 25X25mm | |||||||||||
| 主轴 Spindle | 主轴转速范围 Spindle speeds | 11—1600 r/min (24 steps) | ||||||||||
主轴内孔 Hole though spindle | 52mm(80mm) | |||||||||||
主轴孔锥度 Spindle taper | Morse No.6 (莫氏6号) | |||||||||||
| 进给 Feed | 进给数量 No. of feeds | 64种(kinds)(for each) | ||||||||||
| 公制螺纹Range of metric threads (kinds) | (1-192mm)44种(44kinds) | |||||||||||
| 英制螺纹 Range of inch threads(kinds) | (1-24tpi)21种(21kinds) | |||||||||||
| 模数螺纹 Rage of module threads(kinds) | 0.25-48(模数39种)(Module 39 kinds) | |||||||||||
| 径节螺纹 Rage of Diametral pitc threads (kinds) | 1-96DP(37种)(37 kinds) | |||||||||||
| 床尾 Tailstock | 床尾主轴行程 Max tailstock spindle travel | 150mm | ||||||||||
| 床尾主轴直径 Tailstock spindle diameter | 75mm | |||||||||||
| 床尾主轴孔锥度 | Morse No.5 (莫氏5号) | |||||||||||
| 主电机 Main motor | 7.5KW(10HP) | |||||||||||
包装外形尺寸 Picking dimensions (L×M×H mm) | Overall dimensions for 750 | 2440X1150X1170 | 2440X1150X1700 | 2440X1190X1700 | 2440X1150X1900 | 2440X1150X1950 | ||||||
| Overall dimensions for 1000 | 2650X1150X1700 | 2650X1150X1700 | 2650X1190X1700 | 2650X1150X1900 | 2650X1150X1950 | |||||||
| Overall dimensions for 1500 | 3150X1150X1700 | 3150X1150X1700 | 3150X1190X1700 | 3150X1150X1900 | 3150X1150X1950 | |||||||
| Overall dimensions for 2000 | 3610X1150X1700 | 3610X1150X1700 | 3610X1190X1700 | 3650X1150X1900 | 3650X1150X1950 | |||||||
| Overall dimensions for 3000 | 4610X1150X1700 | 4610X1150X1700 | 4610X1190X1700 | 4650X1150X1900 | 4650X1150X1950 | |||||||
重量 Weight (Kg) | Length | 毛重 G.W. 净重 N.W. | ||||||||||
| Overall dimensions for 750 | 2700 2000 | 2700 2000 | 2860 2260 | 2900 2300 | 3000 2400 | |||||||
| Overall dimensions for 1000 | 2800 2100 | 2700 2000 | 3050 2450 | 3060 2460 | 3200 2600 | |||||||
| Overall dimensions for 1500 | 3050 2250 | 2700 2000 | 3240 2640 | 3250 2650 | 3400 2800 | |||||||
| Overall dimensions for 2000 | 3300 2600 | 2700 2000 | 3480 2880 | 3480 2880 | 3500 3000 | |||||||
| Overall dimensions for 3000 | 4000 3450 | 2700 2000 | 4287 3687 | 4300 3700 | 4500 3900 | |||||||
